A control room LED video wall should not be selected by comparing pixel pitch, resolution and refresh rate on a quotation sheet. The more important question is whether the display can show the information operators need to read, at the distance they actually sit, under the brightness and operating conditions they actually use.

For system integrators, engineering consultants and control room operators, the selection process should therefore be practical:

Measure the Room → Classify the Content → Translate Those Findings into Display Requirements → Verify the Complete System Under Realistic Operating Conditions

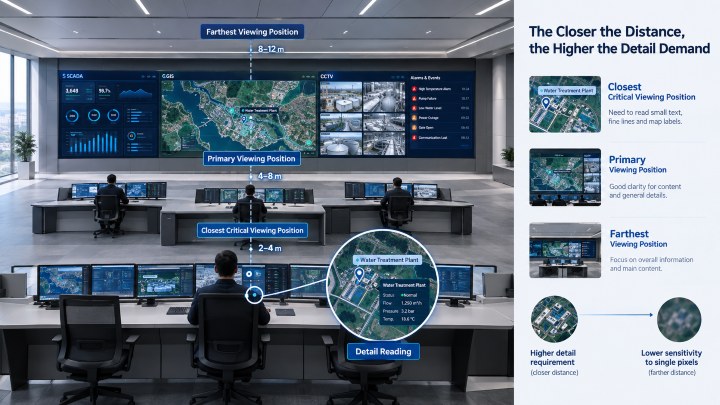

1. Start with Viewing Distance

The first measurement is not the wall size. It is the distance between the LED wall and the people who must read it.

Record at least three positions:

Closest critical viewing position: the nearest operator who must read detailed information.

Primary viewing position: where most operators normally work.

Farthest viewing position: the furthest location from which the wall must remain useful.

Why does this matter?

Pixel pitch determines how much physical pixel density the wall provides. If the pitch is too large for a close operator, individual pixels and fine details become harder to resolve. If the pitch is much finer than the room requires, the additional cost may deliver little visible benefit.

A practical starting range for data-heavy control rooms

For data-heavy control rooms, the initial pixel-pitch range can be estimated based on the closest critical viewing distance:

(1) Under 2 m: P0.9–P1.2

(2) 2–3 m: P1.2–P1.5

(3) 3–4 m: P1.5–P1.8

(4) 4–6 m: P1.8–P2.5

(5) Over 6 m: P2.5 and above

These ranges are starting points, not automatic specifications.

If the wall contains dense text, detailed GIS labels or small SCADA elements, evaluate the finer end of the range. If the wall is mainly used for large CCTV images or overview graphics, the coarser end may be sufficient.

The key rule is simple:

Use the closest position that requires detailed reading to establish the upper limit of acceptable pixel pitch—not the average room distance.

2. Match the Pixel Pitch to What the Wall Actually Displays

Viewing distance tells you where to start. Content determines how demanding the display needs to be.

This is why “4K” should not be the final selection criterion.

A 4K processor or source does not mean every window receives 4K pixels. As more sources share the wall, each window gets fewer pixels.

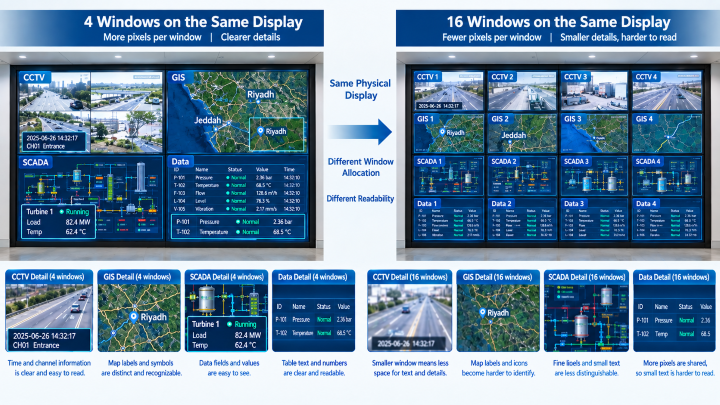

Planning test: Display the smallest required text in the intended layout and compare:

(1) 4 large windows → more pixels per window → better readability

(2) 16 small windows → fewer pixels per window → higher pixel-density demand

If text requires excessive scaling or window enlargement to remain readable, simply labeling the wall “4K” does not solve the problem.

3. Treat Screen Resolution as a System Result

For a control room project team, the more useful question is:

How many physical pixels will each critical application window actually receive?

That number should then be checked against the source resolution, window size, viewing distance, and minimum text size operators need to read.

For a control room, calculate the actual pixel dimensions of the finished LED wall.

Horizontal pixels = Screen width ÷ Pixel pitchVertical pixels = Screen height ÷ Pixel pitch

For example, a 4 m-wide, 2.25 m-high P2.0 LED wall provides approximately:

4,000 ÷ 2.0 = 2,000 horizontal pixels2,250 ÷ 2.0 = 1,125 vertical pixels

So the wall is roughly 2,000 × 1,125 pixels, not automatically a native 4K display.

The key question is:

How many physical pixels will each critical application window actually receive?

This should be checked against the source resolution and the minimum text size operators need to read.

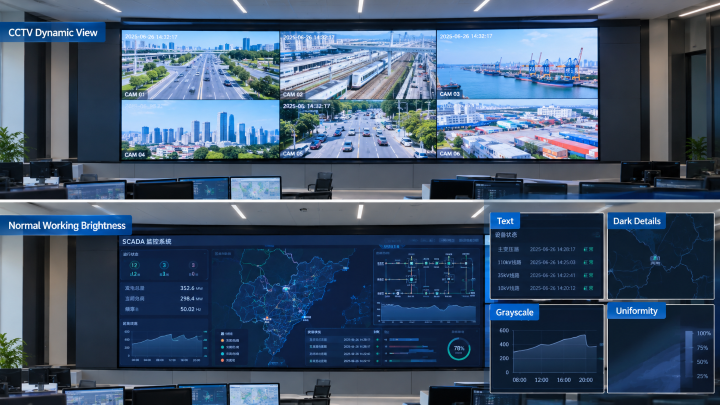

4. Evaluate Image Quality at the Brightness Operators Will Actually Use

Test at normal operating brightness, not maximum brightness. Check grayscale, dark-scene detail, color consistency, uniformity, and text readability under actual room lighting.

Dynamic Content: Run CCTV or high-quality video to verify motion stability, color reproduction, refresh performance, and uniformity.

Data Content: Run dark SCADA/GIS content with small text, thin lines, gradients, warnings, and map labels. Ensure critical details remain readable at normal brightness.

Acceptance Principle: Evaluate the LED wall for information readability under real operating conditions, not maximum visual impact.

5. Design Redundancy Around Actual Failure Risks

For a mission-critical control room, “dual backup” is not a sufficient specification.

Break the system into four levels:

Power → Signal → Processing → LED Display

Then ask what happens when each level fails.

This distinction is critical:

Redundant LED power supplies do not equal UPS protection.

Likewise, a backup signal that passes through the same processor is not a fully independent backup path.

For a high-risk control room, every shared component should be identified as a potential single point of failure.

6. Match Maintenance Design to the Installation Environment

Maintenance requirements should be decided before installation, not after a failure occurs.

If rear access is availableRear maintenance may be practical for a dedicated equipment room.

If the LED wall is against a structural wallFront maintenance becomes much more important because removing surrounding cabinets to reach one failed module can increase downtime.

Before approving the design, confirm:

Can individual modules be removed from the front?

Can power and signal components be accessed?

Can a replacement module be installed without removing adjacent modules?

Are spare modules pre-calibrated or calibration-ready?

What tools are required?

How is the repaired area verified?

The objective is measurable:

How long does it take to return one failed area to normal operation?

That is a more useful maintenance KPI than simply stating “front maintenance.”

7. Check the Control System Before Finalizing the LED Wall

The LED wall is only one part of the display chain.

Before selecting the processor, calculate the required processing capacity based on:

Number of sources × source resolution × simultaneous windows × required processing functions

For example, a project displaying multiple 4K cameras, GIS maps, and operator desktops simultaneously may require substantially more processing capacity than a wall displaying four fixed 1080p sources.

Also check:

• Input/output compatibility

• Scaling

• Window switching

• Latency

• Frame synchronization

• Signal distribution

• Network architecture

Keep in mind: A 3840 Hz LED refresh rate does not automatically mean the complete system has low latency. Source equipment, processing, and signal transmission can still become bottlenecks.

8. LED vs LCD: Use the Room to Make the Decision

The decision should therefore be based on the operating layout, not the assumption that one technology is universally better.

9. Turn the Measurements into a Project Decision

Before requesting a quotation, complete this short decision sheet:

This turns a vague requirement such as “We need a 4K control-room LED wall” into an engineering requirement that suppliers can actually quote against.

10. FAQ About Control Room LED Display

Q1. What pixel pitch is suitable for a control room?

Start with the closest position where operators must read detailed information. As a preliminary range, P0.9–P1.2 is worth evaluating below 2 m, P1.2–P1.5 around 2–3 m, P1.5–P1.8 around 3–4 m, and P1.8–P2.5 around 4–6 m. Dense text and GIS content may justify moving toward the finer end.

Q2. Does a 4K LED video wall guarantee readable control-room content?

No. The actual pixel allocation of each application window matters. A wall can receive a 4K source while individual windows contain far fewer pixels. Always evaluate the smallest critical content in the intended window layout.

Q3. What brightness should a control-room LED wall run at?

Do not select operating brightness from maximum brightness alone. Establish the target based on room lighting and operator comfort, then verify grayscale, text and uniformity at that brightness.

Q4. What redundancy does a control-room LED video wall need?

At minimum, review four layers: power, signal, processing and LED components. Identify the single point of failure at each layer and define the expected failover or repair response.

Conclusion

The right control-room LED video wall should be selected based on viewing distance, content, pixel pitch, brightness, processing, redundancy, and maintenance, not headline specifications alone.

Define these requirements before requesting quotations to compare suppliers on actual project needs.
