Home > Products > Outdoor LED Video Wall > FA1 PRO
FA1 PRO
IP66 Outdoor Front and Rear Access LED Display
Lightweight
14bits~22bits
Cable Free
3,840Hz~40,000Hz
10000nits
50% Energy Saved
Aluminium Cabinet
IP66

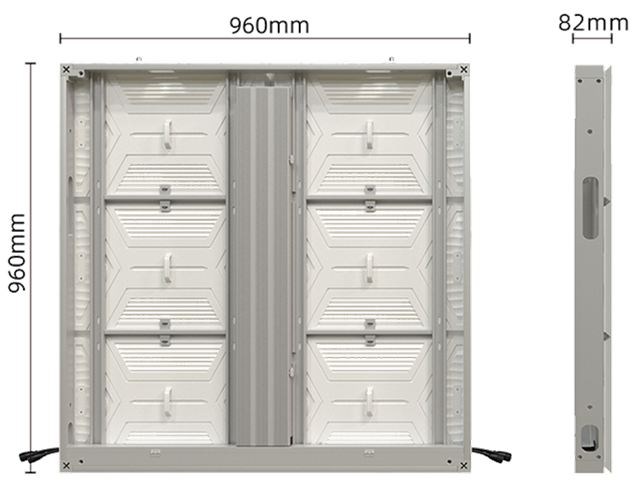

Slim and lightweight design
The aluminum cabinet is designed to be 23kgs/sqm lighter than conventional cabinets in the market. Lighter cabinets provide more convenience for installation.Multiple panel sizes can be easily assembled into a big screen of different dimensions.960(w)mm x 960(h)mm / 500(w)mm×1000(h)mm / 500(w)mm×750(h)mm /500(w)mm×500(h)mm,82mm thickness,23kgs/sqm weight.The pixel pitch P2.9, P3.9, P4.8,P5.71, P6.67, P8 and P10 are available.

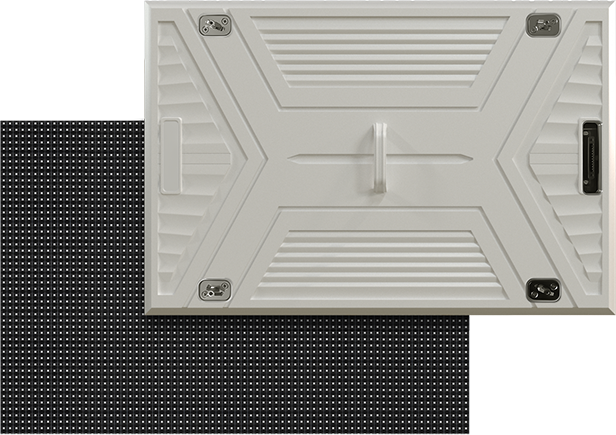

Front and Rear Access
The power supply, receiving card, and module can be removed from the front or rear side. This kind of concise and easy design allows removing and replacing modules fast in an emergency, especially when the technician wonders which part has issues. Fast problem-solving saves a large amount of labor costs.

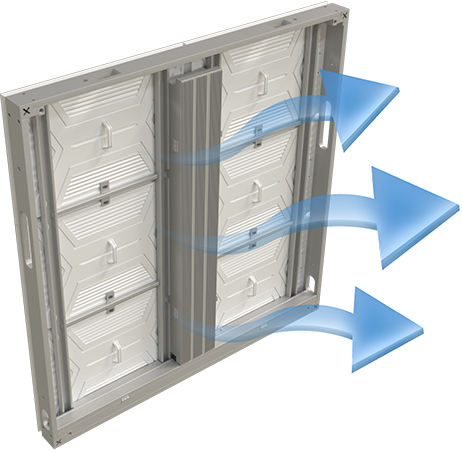

Good heat dissipation
All aluminum material is more durable and highly stable than traditional steel. Meanwhile, heat dissipation of aluminum is much better than others in the market. As the electronic components can be cooled down quickly, their lifespan will be longer. The module and power supply are separate, and the heat they generate will not affect each other after being lit. In addition, the power box has a striped design, which increases the contact surface with the air, so the heat dissipation is better.

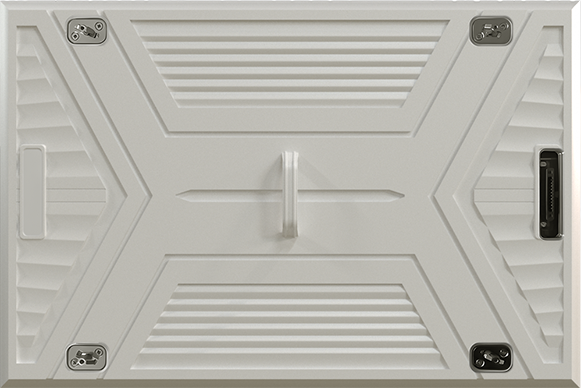

Cable free module with signal row pin socket
This design doesn’t require the ribbon cable, so the signal connection of the modules is much better than common designs in the market. What’s more, we use single row pin sockets, its characteristics are: High precision: Its precise pin spacing ensures stable connections between electronic components and improves the overall performance of the circuit board. High reliability: It is made of high-quality materials, has good electrical conductivity and corrosion resistance, and can ensure the stable operation of the circuit.

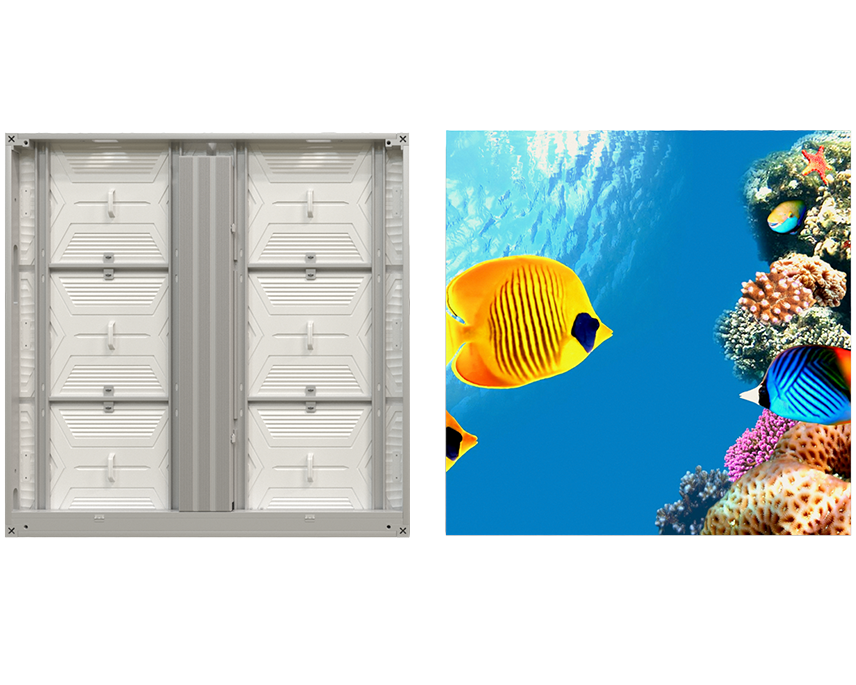

Hight Brightness up to 10,000nits
To display clearly what is on the LED screen in outdoor scenes, we adopt the new methods of superior PCB design and LED chip to make brightness reach more than 10000nits. With the ultra-high brightness, refresh rate, and gray scale, the visual performance of the screen is unexceptionable.
High refresh rate and high grayscale
A refresh rate greater than or equal to 3840Hz is used to capture high dynamic range images, which helps to eliminate scan lines and flickering on the display. A high grayscale level of 14bits-22bits ensures excellent visual quality, and the LED display provides vivid visual effects.

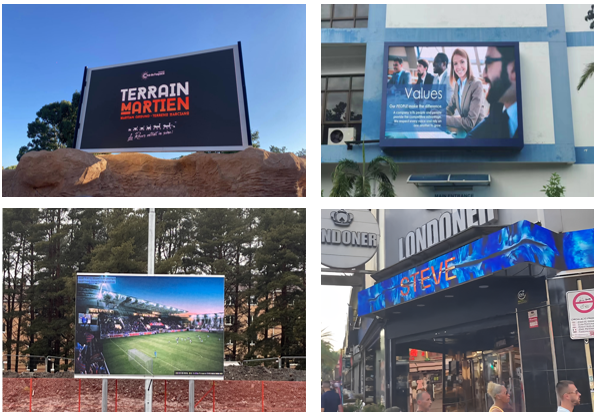

Application Fields
To fit every different scene, our products utilize superior materials with a concise and strong structure, and various installation methods make it flexible and easy to apply.This product is usually used in:
Truck Trailers;
Scoreboards;
Digital Out Of Home(DOOH).
Item
Pixel Pitch
LED Type
Module Resolution
Driving Mode
Module Pixels
Module Size
Cabinet Size(mm)
Cabinet Resolution
Pixel Density
Minimum Viewing Distance
Brightness
IP Grade
Refresh Rate
Gray Scale
Viewing Angle
Maximum Power Consumption
Average Power Consumption
Input Voltage
Operating Temperature
Operating Humidity
Cabinet Material
Cabinet Weight
Operating System
Signal Source Compatibility
-
P2.9
2.9mm
SMD1415
84dots×84dots
1/14scan
7056dots
250mm×250mm
500×500×82/500×750×82/500×1000×82
168dots×336dots
112,896dots/㎡
≥2.9 m
4500nits ~ 5000nits
IP66
≥3840Hz
14bits~22bits
H:160° / V:160°
620W/m²
160W/m²
AC110V-220V@ 50Hz/60Hz
﹣20℃～60℃
10%~90%
Aluminum
23kg/sqm
Windows (Win7, Win8, etc.)
DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
-
P3.9
3.9mm
SMD1921
64dots×64dots
1/8scan
4096dots
250mm×250mm
500×500×82/500×750×82/500×1000×82
128dots×256dots
65,536dots/㎡
≥3.9 m
5500nits- 6000nits
IP66
≥3840Hz
14bits~22bits
H:160° / V:160°
620W/m²
160W/m²
AC110V-220V@ 50Hz/60Hz
﹣20℃～60℃
10%~90%
Aluminum
23kg/sqm
Windows (Win7, Win8, etc.)
DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
-
P4.8
4.8mm
SMD1921
52dots×52dots
1/7scan
2704dots
250mm×250mm
500×500×82/500×750×82/500×1000×82
104dots×208dots
43,264dots/㎡
≥4.8 m
5500nits- 6000nits
IP66
≥3840Hz
14bits~22bits
H:160° / V:160°
620W/m²
160W/m²
AC110V-220V@ 50Hz/60Hz
﹣20℃～60℃
10%~90%
Aluminum
23kg/sqm
Windows (Win7, Win8, etc.)
DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
-
P5.71
5.71mm
SMD2727
84dots x 56dots
1/7scan
4704dots
480mm x 320mm
960 x960×82
168dots x 168dots
30,671dots/㎡
≥5.71 m
5000nits ~ 10000nits
IP66
≥3840Hz
14bits~22bits
H:160° / V:160°
560W/m²
160W/m²
AC110V-220V@ 50Hz/60Hz
﹣20℃～60℃
10%~90%
Aluminum
23kg/sqm
Windows (Win7, Win8, etc.)
DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
-
P6.67
6.67mm
SMD2727
72dots x 48dots
1/6scan
3456dots
480mm x 320mm
960 x960×82
144dots x 144dots
22,478dots/㎡
≥6.67 m
5000nits ~ 10000nits
IP66
≥3840Hz
14bits~22bits
H:160° / V:160°
560W/m²
160W/m²
AC110V-220V@ 50Hz/60Hz
﹣20℃～60℃
10%~90%
Aluminum
23kg/sqm
Windows (Win7, Win8, etc.)
DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
-
P8
8mm
SMD2727
60dots x 40dots
1/4scan
2400dots
480mm x 320mm
960 x960×82
120dots x 120dots
15,625dots/㎡
≥8 m
5000nits ~ 10000nits
IP66
≥3840Hz
14bits~22bits
H:160° / V:160°
560W/m²
160W/m²
AC110V-220V@ 50Hz/60Hz
﹣20℃～60℃
10%~90%
Aluminum
23kg/sqm
Windows (Win7, Win8, etc.)
DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
-
P10
10mm
SMD2727
48dots x 32dots
1/2scan
1536dots
480mm x 320mm
960 x960×82
96dots x 96dots
10,000dots/㎡
≥10 m
5000nits ~ 10000nits
IP66
≥3840Hz
14bits~22bits
H:160° / V:160°
560W/m²
160W/m²
AC110V-220V@ 50Hz/60Hz
﹣20℃～60℃
10%~90%
Aluminum
23kg/sqm
Windows (Win7, Win8, etc.)
DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
