Home > Products > COB LED Display > COB Ultra
COB Ultra
Innovative COB LED Display - P0.78 P0.93 P1.25 P1.56 P1.87
IP54
Large Viewing Angle
16:9 Aspect Ratio
Die-Casting Aluminum
Seamless Connection
Front Access
3840Hz-7680Hz

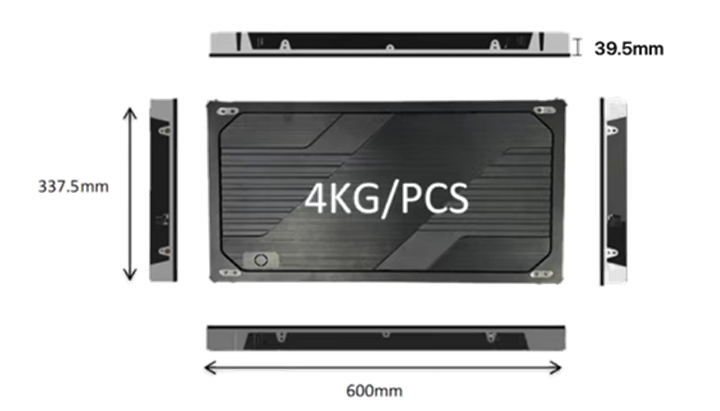

Easy MaintenanceSlim and Lightweight Design
Our COB Ultra series adopt die-casting aluminum cabinet , designed to be 4kg/panel, lighter than conventional cabinets in the market, its humanized design offers higher strength, lightweight construction and precision.
600(w)mm x 337.5(h)mm or 600(w)mm x 675mm(h)
39.5mm thickness
4kgs weight
The pixel pitch P0.78, P0.93, P1.25, P1.56 and P1.87 are available.

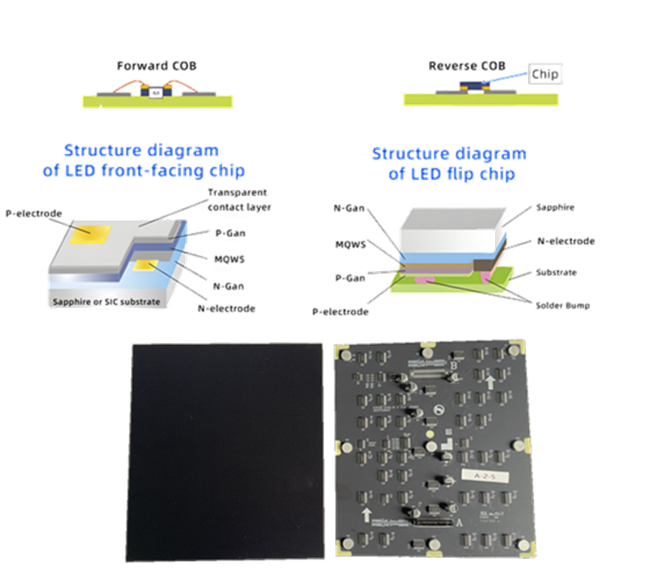

Flip Chip Technology
Our COB Ultra uses advanced flip COB technology.
Flip COB structure is simpler, has simplified manufacturing process, no gold wire and better heat dissipation.
Higher protection, reliability and RGB light mixing effect.
Chip level micro-spacing, ultra high-definition display and light source is not dazzling.

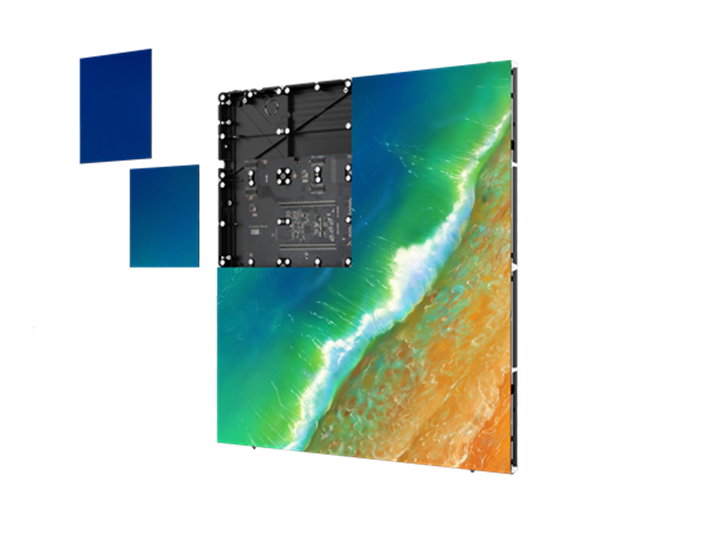

Fully Front Access Magnetic Design ＆ Easy Maintenance
The module of cabinet are installed and removed fully from the front, which can realize the full front maintenance of the cabinet.The upper, lower, left and right connection of the cabinet is locked and leveled by the connecting piece, and easy to install.

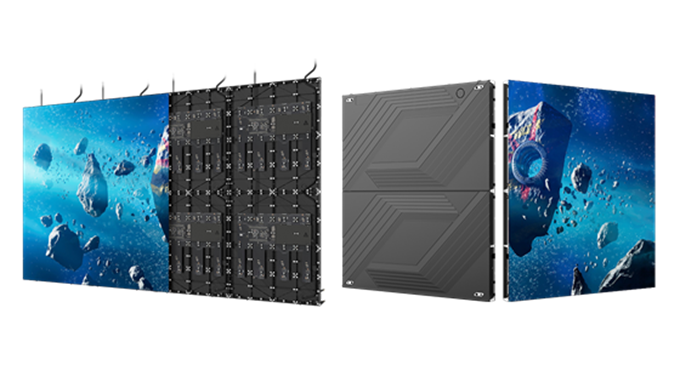

Special Cabinet Size: 600x675mm
In order to fit some special screen are as and meet the needs of customers, we also designed a special cabinet size 600×675mm for the P1.875 LED display screen, which is very popular with customers.
Strong Module with IP54
Compared with ordinary indoor LED products, we adopt IP54 high protection level.
Allow the water clean on surface.
Isolate electronic parts from humidity and dust.
Have higher shockproof level, greater reliability and high level surface protection.

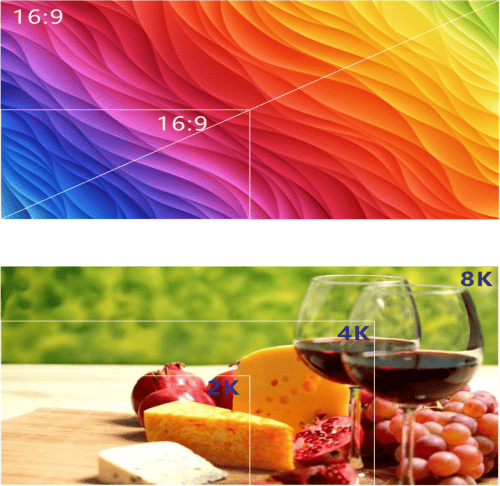

Exquisite Cabinet Design
COB encapsulated micro-pitch LED display adopts 16:9 golden ratio cabinet size design, accurately matching the standard resolution of 2K/4K/8K. The screen image’s quality is better, higher definition, more delicate, and has better visual effects.

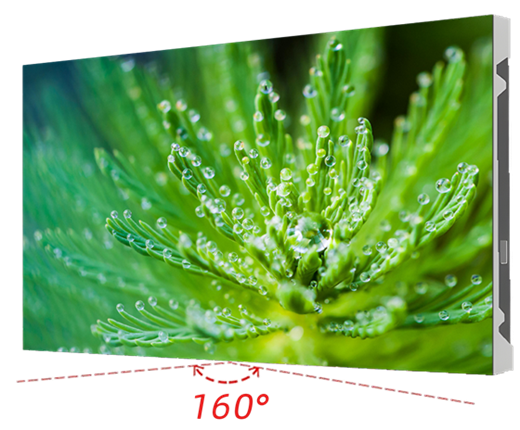

Larger Viewing Angle
More than 160 degrees of ultra-wide viewing angle allow more viewers to fully immerse themselves in its captivating visual display. Regardless of the angle from which it is viewed, one can experience its breathtaking visual effects.

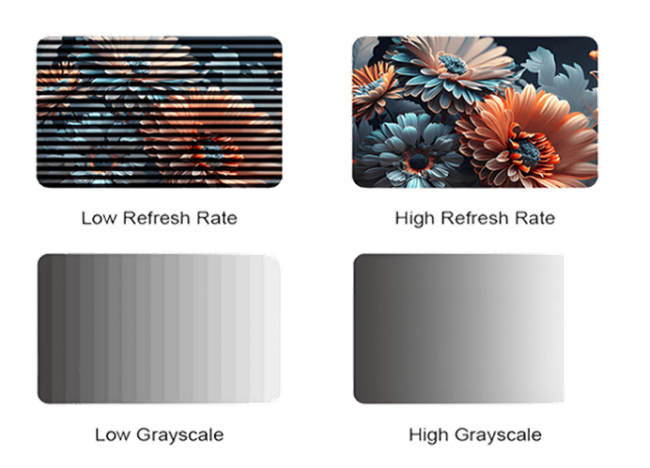

Extraordinary Visual Effects
Thanks to the high refresh rate (3840-7680Hz) and grey scale (up to14-22bits), our COB Ultra series delivers exceptional visual performance. The image is more stable and the clearer, bring us amazing visual effects. In addition, the light from our COB LED looks softer to our eyes.

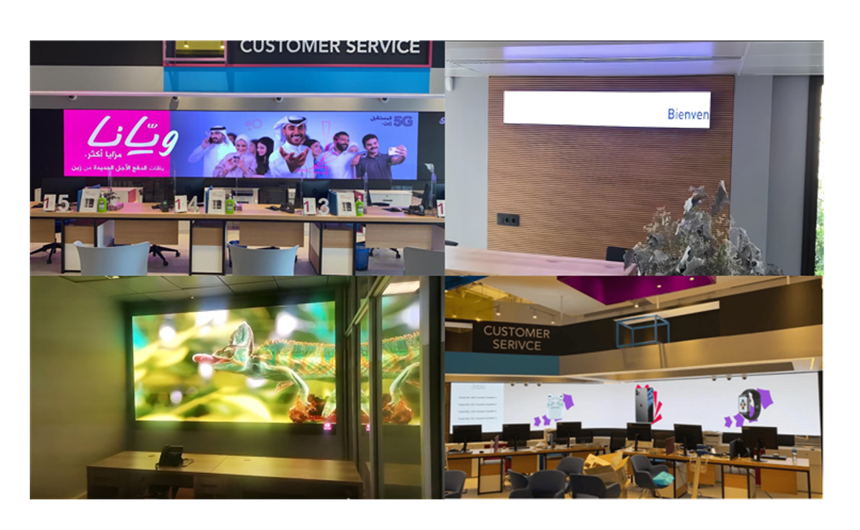

Application Fields
The high-precision screen is perfect for various installation environments, and it has gained customer praise for its reliable performance and high-quality image effects.
Its application fields are as follows:
Meeting Room
TV Studio
Exhibition Center
Shopping Mall
Airport
Cinema
Item
Pixel Pitch
LED Type
Module Resolution
Driving Mode
Module Pixels
Module Size
Cabinet Size
Cabinet Resolution
Pixel Density
Minimum Viewing Distance
Brightness
IP Grade
Refresh Rate
Gray Scale
Viewing Angle
Maximum Power Consumption
Average Power Consumption
Input Voltage
Operating Temperature
Operating Humidity
Cabinet Material
Cabinet Weight
Operating System
Signal Source Compatibility
-
P0.78
0.78mm
Flip COB
192dots×216dots
1/64scan
41472dots
150×168.75mm
600×337.5×39.5mm
769dotsx 432dots
1643655dots/㎡
0.78m
≥600nits
IP54
3840Hz~7680Hz
14~22bits
H:160° / V:160°
370W/m²
160W/m²
AC100V - AC240V @ 50Hz/60Hz
﹣20℃～40℃
10%～90%
Die-casting Aluminum
4kg/panel
Windows (Win7, Win8, etc.)
DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
-
P0.93
0.93mm
Flip COB
160dots×180dots
1/54scan
28800dots
150×168.75mm
600×337.5×39.5mm
640dotsx 360dots
1137777dots/㎡
0.93 m
≥600nits
IP54
3840Hz~7680Hz
14~22bits
H:160° / V:160°
370W/m²
160W/m²
AC100V - AC240V @ 50Hz/60Hz
﹣20℃～40℃
10%～90%
Die-casting Aluminum
4kg/panel
Windows (Win7, Win8, etc.)
DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
-
P1.25
1.25mm
Flip COB
120dots x 135dots
1/45scan
16200dots
150 x 168.75mm
600×337.5×39.5mm
480dots x 270dots
640000dots/㎡
1.25 m
≥600nits
IP54
3840Hz~7680Hz
14~22bits
H:160° / V:160°
320W/m²
150W/m²
AC100V - AC240V @ 50Hz/60Hz
﹣20℃～40℃
10%～90%
Die-casting Aluminum
4kg/panel
Windows (Win7, Win8, etc.)
DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
-
P1.56
1.56mm
Flip COB
96dots x 108dots
1/54scan
10368dots
150 x 168.75mm
600×337.5×39.5mm
384dotsx 216dots
409600dots/㎡
1.56m
≥600nits
IP54
3840Hz~7680Hz
14~22bits
H:160° / V:160°
320W/m²
150W/m²
AC100V - AC240V @ 50Hz/60Hz
﹣20℃～40℃
10%～90%
Die-casting Aluminum
4kg/panel
Windows (Win7, Win8, etc.)
DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
-
P1.87
1.87mm
Flip COB
80dots x 90dots
1/45scan
7200dots
150×168.75mm
600×675×39.5mm
320dotsx 360dots
285967dots/㎡
1.87m
≥650nits
IP54
3840Hz~7680Hz
14~22bits
H:160° / V:160°
320W/m²
150W/m²
AC100V - AC240V @ 50Hz/60Hz
﹣20℃～40℃
10%～90%
Die-casting Aluminum
7.9 kg/panel
Windows (Win7, Win8, etc.)
DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
